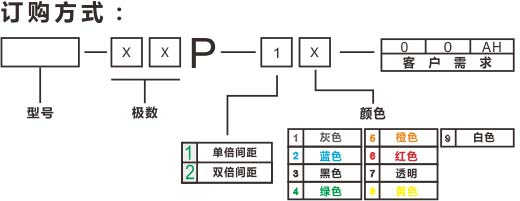

| 项 目 (Item) | 数 据 (Data) | ||
| 认证(APPROVAL) | 认证查询连接 | 认证查询连接 | ||
| 测试标准(Test standard) | IEC/EN61984：2009 / UL1059 | ||
| 产品间距(Pitch)[mm] | 7.62 | ||
| 极数(Poles) | 2-12P | ||
| EN61984测试数据（EN61984 Test data) | VDE certificate NO. 40038729 | ||
| 额定电压(Rated voltage)[V] | 400 | ||
| 额定电流(Rated current)[A] | 20 | ||
| 额定连接容量(Rated connection capacity)(solid/stranded) [mm2] | 0.2~2.5 | ||
| 过压类别/污染等级/绝缘材料组别
(Surge voltage category/pollution degree/material group) |
III/2/I | ||
| 额定冲击电压(Rated impulse voltage)[KV] | 4.0 | ||
| 额定扭矩(Rated torque)[N·m] | 0.4 | ||
| UL1059测试数据（UL1059Test data) | UL File Number E228872 | ||
| 应用组别(Use group) | B | C | D |
| 额定电压(Rated voltage)[V] | 300 | / | 300 |
| 额定电流(Rated current)[A] | 10 | / | 10 |
| 额定连接容量(Rated connection capacity) (solid/stranded) [AWG] | 28-12 | ||
| 额定扭矩（Rated torque）[Lb. in] | 3.54 | ||
| 通用数据(General data) | / | ||
| 螺丝(Screw) | M2.5 | ||
| 阻燃等级(Inflammability class)UL94 | V-0 | ||
| 环境温度(Ambient temperature)[℃] | -40~+105 | ||
| 相对湿度(Relative humidity) | 5%-95% | ||
| 抽样检验标准(Inspection standard） | MIL-STD-105E II | ||
| 允收水准(AQL) | 0.65 | ||
| 保质期(Warranty) | 12 months | ||
| 材质和电镀(Material and plating) | / | ||
| 绝缘材质(Housing) | PA66 | ||
| 螺丝(Screws) | Steel，Zn plated钢,镀锌 | ||
| 触点材料(Contact) | Copper alloy，Sn plated铜合金，镀锡 | ||
| 方盒(Cage) | Copper alloy，Ni plated铜合金，镀镍 | ||
| 接线方法 (Wire connecting) | |||
| 推荐剥线长度9-10mm; Recommended stripping length 9-10mm; | |||
| 1.）单股硬导线，剥好对应长度的导线后，用额定的扭力拧紧；
For solid wire, stripping wire to the appointed length, then tightening with rated torque. |
|||
| 2.）多股柔性导线，剥好对应长度的导线后，可以直接连接或者配套使用对应标准规格的冷压端头，用额定的扭力拧紧；
For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque. |
|||
| 注意事项：扭力要平稳，不能使用爆发力；( Tightening process should be steady, can’t use explosive force.) | |||
